COMBINATOR POLIFOX 1700 PLUS

UNIQUE – The main advantage of the GALESKI COMBINATOR

1. No tilting moment

Usually, drill stands have only one drill column when used for working on stone. The design of this system means though that tilt forces work against the stand and the load on the suction cups is not equal.

The drill stand is also subject to distortion and this affects the gearwheel and bearing clearance. It also leads to something you don´t want when drilling – canting.

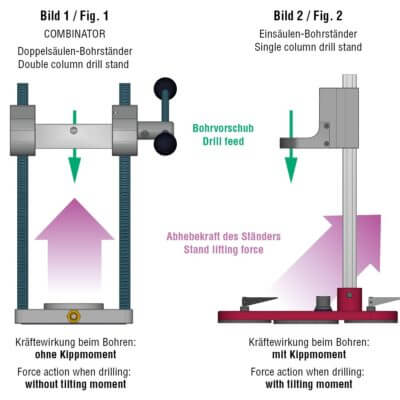

You won´t have problems like that with the GALESKI COMBINATOR double drill columns. Drilling occurs between the two columns, so these negative forces don´t even exist (see fig. 1 and 2).

2. High-quality, consistent force transmission for drill feed

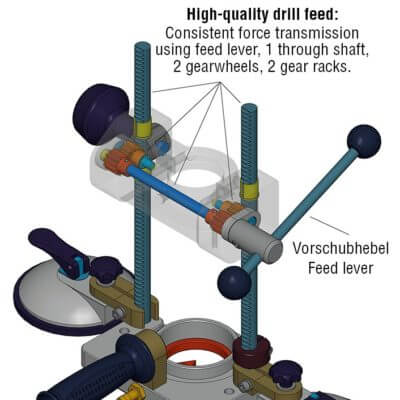

When you turn the feed lever on the GALESKI COMBINATOR, force transmission takes place along through the shaft on both gear racks. Again – no canting! (See fig. 1 and 3).



3. Light and manageable

In comparison to other drill stands on the market, the GALESKI COMBINATOR is compact, light, and manageable. The solid, and heavy (because of the tilt forces), the center column is not necessary.

The GALESKI COMBINATOR is short and can be used where there is only a little space.

4. Variability

The GALESKI COMBINATOR has many abilities and talents:
• Drill on the surface
• Drill on the stone edge (e.g. facade panels)
• Use your own drill
• Choose from 5 different GALESKI drill motors
• Use on smooth surfaces with suction cups
• Use on rough surfaces with VENTURI system
• Can be used with a wet vacuum cleaner
• Can be expanded and upgraded at any time.

COMBINATOR POLIFOX 1700 PLUS

Drilling machine POLIFOX VARIO DI:
Silicone connecting cable 4 m, personal protection switch PRCD, hose 2.5 m, water control valve, splash guard, bail handle.

Twin column drill stand:

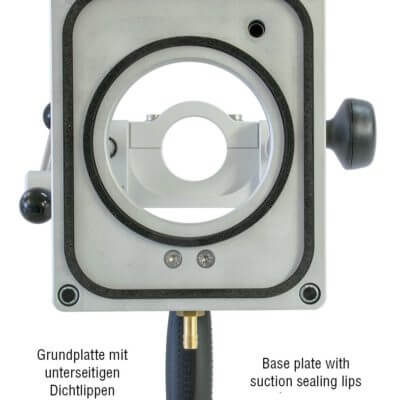

Base plate with suction sealing lips, fully fitted Venturi unit, water collecting system, handle, hose and adapter for water suction unit, central point finder, 2 adjustable suction cups Ø 120 mm with clamp mounting to drill stand, 2 drill adapters M14 and R1/2“, Allen wrench, carton.



Voltage	230 volts
Power	1.750 watt
Rotational speed
Tool Ø max.
Drilling stroke max.
Drill connection thread
Weight
Suction Mountings
