GADIA LINE (RAIL SYSTEM)

GADIA LINE rail system:

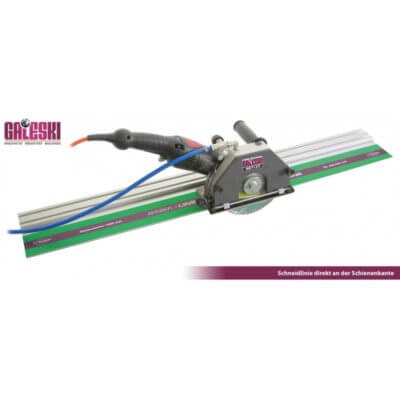

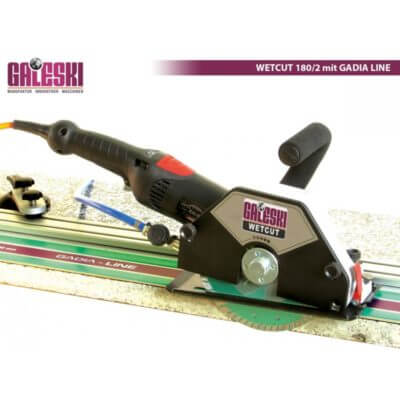

The WETCUT 180/2 stone cutter can be connected to the GADIA LINE guide rail with the connection adapter to cut safely and precisely. The cutting line runs along the edge of the rail which makes it easy to align. Individual rails can be connected by means of the connecting piece to provide different cutting lengths. Fastening the rail to the surface can be done by various means: to slabs with clamps, to polished surfaces with suction levers, to rough surfaces with vacuum holders.

• • GADIA LINE is available in 100cm and 150cm lengths (other lengths on request)
  • plastic slide-strips provide a precise and wear-free guide for the machine
  • anti-slip rubber coating underneath helps to align and prevents scratching

• two 1m long basic sets with various fastening options for polished and rough surfaces are available





Rail system
Description	Type	Item no.
GADIA LINE slide rail, short 100 cm	with plastic coating above and anti-slip rubber beneath	060.036.140
GADIA LINE slide rail, long 150 cm	with plastic coating above and anti-slip rubber beneath	060.036.141

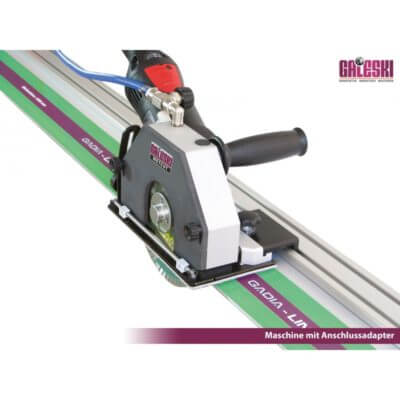

Connecting adapter	guide and connection between machine and rail	036.128

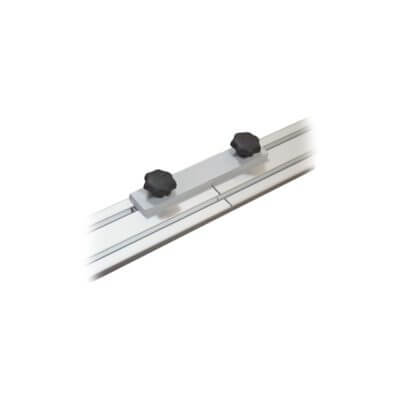

Connecting piece	for more than one rail	060.036.124

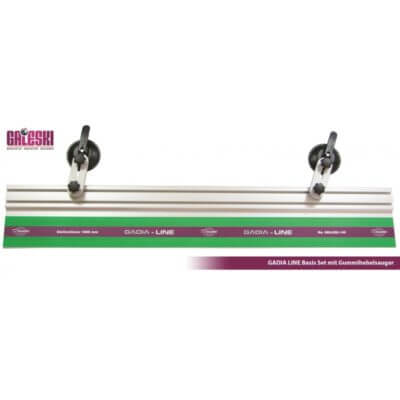

GADIA LINE basic slide rail set for smooth surfaces	slide rail 100 cm, 2 suction levers Ø 90 mm	060.036.143
Suction lever Ø 90 mm, 1 piece	complete with a fastener to the rail, for rail extensions	060.036.144

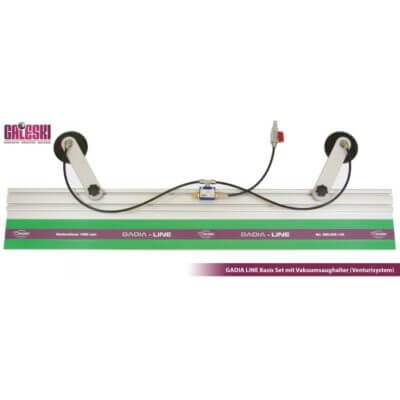

GADIA LINE basic slide rail set for rough surfaces	slide rail 100 cm, vacuum unit, 2 vacuum suction cups Ø 90 mm with a hose for connection to the suction unit (venturi system)	060.036.145
Vacuum suction cup Ø 90 mm, 1 piece	complete with a fastener to the rail, for rail extensions	060.036.146
