DIAMOND SAW BLADES

When selecting a saw blade, please observe the following:

• Only choose segmented, sintered blades for granite according to the appropriate slab thickness. E.g. G2 and B2 for 2 cm slabs; G3 and B3 for 3 cm slabs. Incorrect use results in irregular wear and intense vibrations.

The segmented blades for granite are available in two categories:

1) G and SGG blades for full cuts in the corresponding slab thickness, e.g. circular-cut after opening up by drilling.

2) B and SGB blades for cutting remainders, e.g. in the corners of hotplates after opening up with a cutting disc. The diamond segments on the blade work at different rates and are laid out differently.

• The segmented, sintered granite and sandstone blades should be sharpened occasionally in a sharpening stone.

• Electroplated blades (SGM / SGM-S) for marble, soapstone, and soft stone can be used for all slab thicknesses up to 6 cm (up to 7 cm in soapstone). Never sharpen these blades with a sharpening stone!







Designation	Description	Recommended machine	Item no.
SGG2 (20 mm) for granite	Sintered	PGS 50	001.102
SGG3 (30 mm) for granite	Sintered	PGS 50	001.103
SGG4 (40 mm) for granite	Sintered	PGS 50	001.104
SGB2 (20 mm) for remainders of bridge saw cuts	Sintered	PGS 50	001.109
SGB3 (30 mm) for remainders of bridge saw cuts	Sintered	PGS 50	001.110
SGB4 (40 mm) for remainders of bridge saw cuts	Sintered	PGS 50	001.111
SGS4 (40 mm) for sandstone	Sintered	PGS 50	001.105
SGS5 (50 mm) for sandstone	Sintered	PGS 50	001.106
SGS6 (60 mm) for sandstone	Sintered	PGS 50	001.107
SGS8 (80 mm) for sandstone	Sintered	PGS 50	001.108

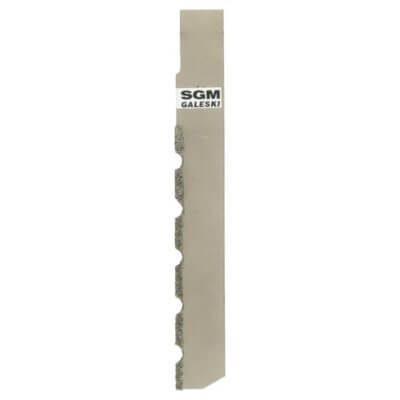

SGM (60 mm) for marble	Electroplated	PGS 50 / PGS 60 / SHARKY	001.101
SGM-S (70 mm) for soapstone	Electroplated	PGS 60 / SHARKY	001.116
G2 (20 mm) for granite	Sintered	PGS 60 / SHARKY	001.802
G3 (30 mm) for granite	Sintered	PGS 60 / SHARKY	001.803

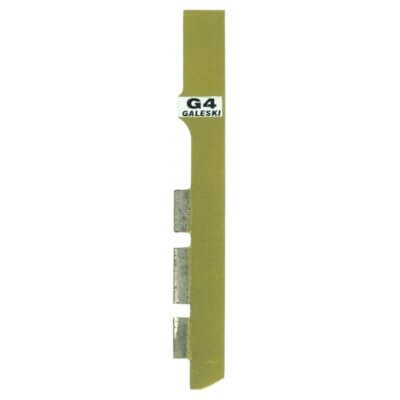

G4 (30 mm) for granite	Sintered	PGS 60 / SHARKY	001.804
B2 (20 mm) for remainders of bridge saw cuts	Sintered	PGS 60 / SHARKY	001.809
B3 (30 mm) for remainders of bridge saw cuts	Sintered	PGS 60 / SHARKY	001.810
B4 (40 mm) for remainders of bridge saw cuts	Sintered	PGS 60 / SHARKY	001.811
S4 (40 mm) for sandstone	Sintered	PGS 60 / SHARKY	001.805
S5 (50 mm) for sandstone	Sintered	PGS 60 / SHARKY	001.806

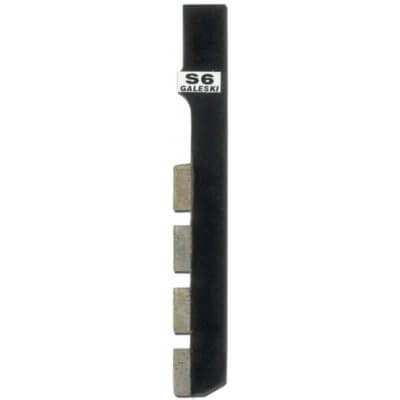

S6 (60 mm) for sandstone	Sintered	PGS 60 / SHARKY	001.807
S8 (80 mm) for sandstone	Sintered	PGS 60 / SHARKY	001.808
