Combinator Universal Set:
Defining features:

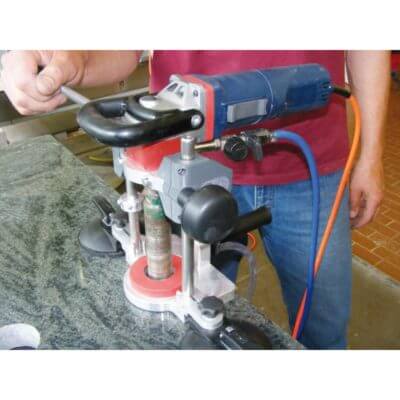

- Compact twin-column drill stand with rubber-coated base plate and water collecting opening to extract the drilling mud with a wet vacuum cleaner

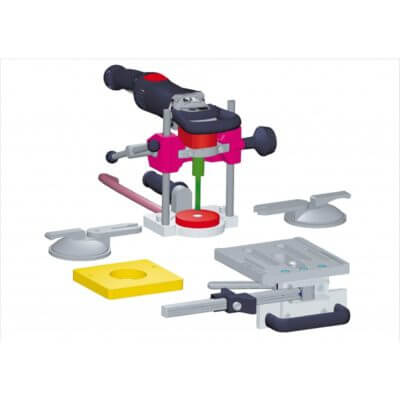

- Three fastening options: 1. base plate fastened with clamps; 2. two adjustable suction cups with levers; 3. additional vacuum plate to be screwed on, for a vacuum pump or with Venturi system for compressor
- Horizontal or vertical drilling max. Ø= 70 mm
- A “central point finder” helps to align the drill stand
- Cover caps with various drill openings prevent splashing of drilling mud
- Machine holder D= 53 mm
- Tool holder: 1x R 1/2″ internal adapter; 1x M14 external adapter
Additional features:
- Angle clamping unit for drilling into the front sides of stone slabs, e.g. cladding sheets. Maximal clamping thickness: 12 cm

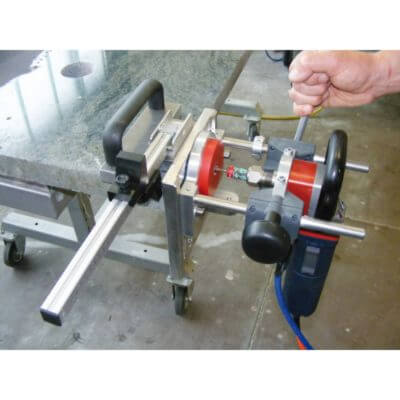

- Easy horizontal drilling, e.g. for cladding sheets
- A swivel and turnable rail with 2 adjustable stops helps to set the hole at the exact distance to the edge, ideal for exact serial drilling
- Adjustable drill center for different slab thicknesses.
Motor features:
- Internal water feeding and reinforced spindle bearing with double ball bearing for long life
- Advantageous for serial drilling, presetting of water amount: regulating valve
- Variable speed with setting wheel (1,700 – 6,800 rpm)
- Long-life silicon connecting cable
- Temperature-dependent overload protection
- Spindle lock for easy tool change
- Self-cutting carbon brushes and easy brush exchange
COMBINATOR UNIVERSAL SET (Drill lift: 150 mm) INCL. CLAMPING UNIT – Item no.: 002.022.003
Consisting: Motor Combinator MAXI, Basic Set, with angle clamping unit for cladding sheet drilling
COMBINATOR UNIVERSAL SET (Drill lift: 230 mm) INCL. CLAMPING UNIT – Item no.: 002.022.020
Consisting: Motor Combinator MAXI, Basic Set, with angle clamping unit for cladding sheet drilling.
