COMBINATOR BASIC MAXI

Combinator Basic Maxi – Set:

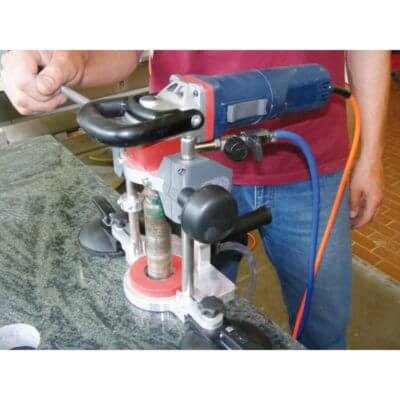

• Compact twin-column drill stand with rubber-coated base plate and water collecting opening to extract the drilling mud with a wet vacuum cleaner

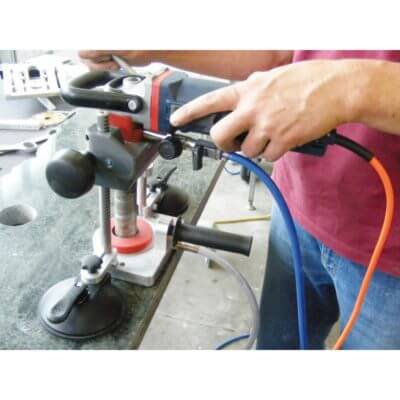

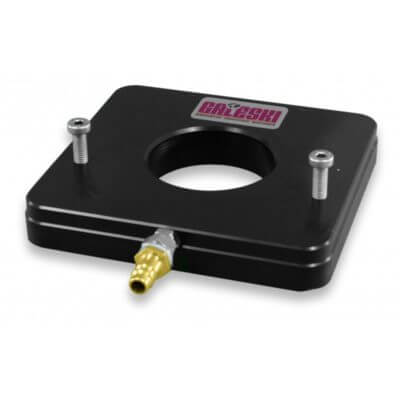

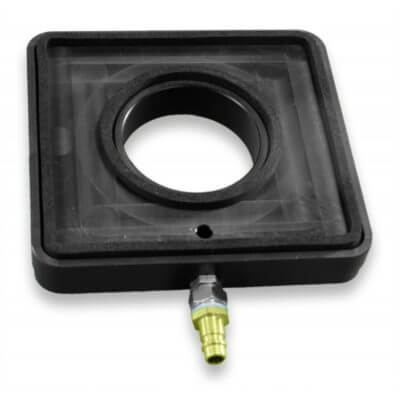

• Three fastening options: 1. base plate fastened with clamps; 2. two adjustable suction cups with levers; 3. additional vacuum plate to be screwed on, for a vacuum pump or with Venturi system for compressor

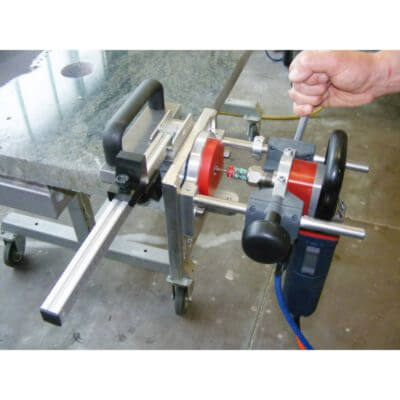

• Horizontal or vertical drilling up to D= 70 mm
• A “central point finder” helps to align the drill stand
• Cover caps with various drill openings prevent splashing of drilling mud
• Machine holder D= 53 mm
• Tool holder: 1x R 1/2″ internal adapter; 1x M14 external adapter

Motor features:

• Internal water feeding and reinforced spindle bearing with double ball bearing for long life
• Advantageous for serial drilling, presetting of water amount: regulating valve
• Variable speed with setting wheel (1,700 – 6,800 rpm)
• Long-life silicon connecting cable
• Temperature-dependent overload protection
• Spindle lock for easy tool change
• Self-cutting carbon brushes and easy brush exchange

Voltage	230 volts
Power	1,550 watt
Rotational speed	1,700 – 6,800 1/min.
Drilling stroke max.
Diffusor opening Ø	70mm Base plate
Motor type	Combinator Maxi DI
Combinator Basis Maxi Set	Drill Stroke=150mm, Drill Stroke=230mm
