1.372,00 € – 1.417,00 €

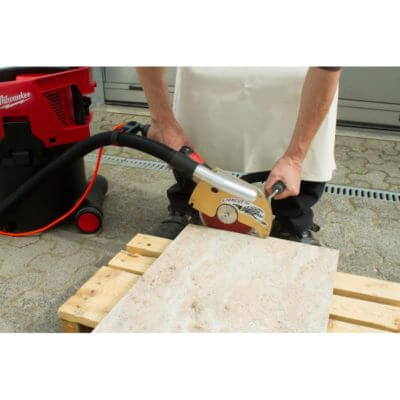

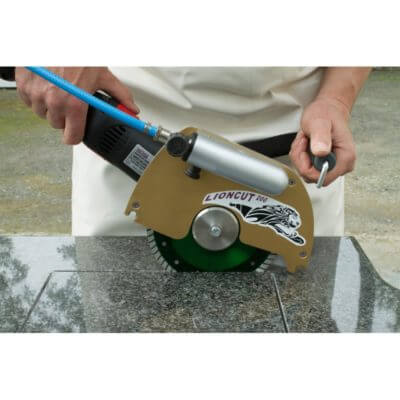

Professional dry cutter with extraction connection for a vacuum cleaner. Inclusive: convertible to water feeding. It can be used free-handed or with a guide slide. Compact design with a huge cutting depth of up to 6,3 cm. The machine is well-balanced and has got a bail handle for comfortable and precise work.
SKU: 003.036.308 (230V)
Categories: Dry / Wet Combined, SAWING / CUTTING
Tags: Cutter, Dry, Saw, Wet
Description

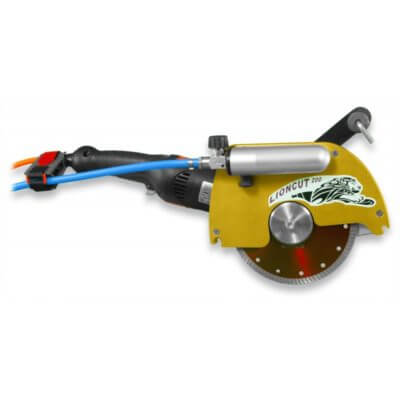

LIONCUT 200 VARIO COMBI PLUS DI:
- Suitable for dry and wet cutting (equipped with personal protection switch PRCD in the cable)

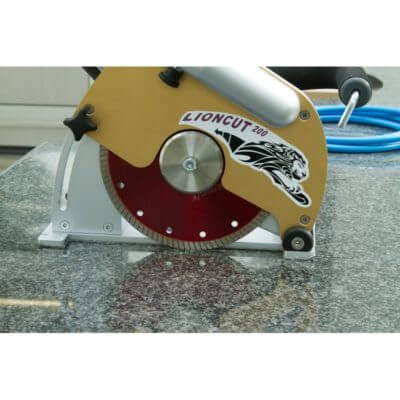

- It can be used free-handed or with a guide slide for precise cutting
- By operating a spring-loaded pin the dust extraction unit can be exchanged against a water feeding unit
- Optimal water distribution inside the protective hood
- Very slim protective hood for the ideal view of the cutting area

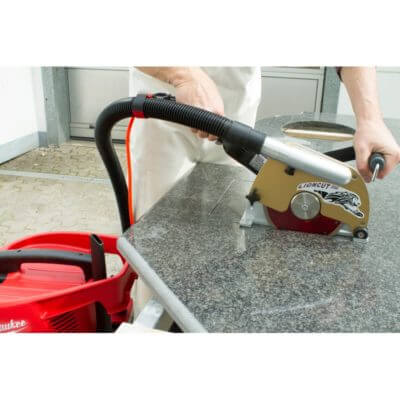

- With integrated connector for vacuum cleaner
- The extraction hose and the water feeding hose are connected to the electrical cable by means of a Velcro fastener and do not disturb during the cutting process
- Ergonomic and well-balanced design for comfortable and safe work
- Reduction of vibration through autobalancer for a long life of gear unit and saw blade
- Powerful motor with variable speed
- Long-life silicone connecting cable
- Spindle lock for easy tool change
- Temperature-dependent overload protection
- Self-shutting carbon brushes and easy brush exchange

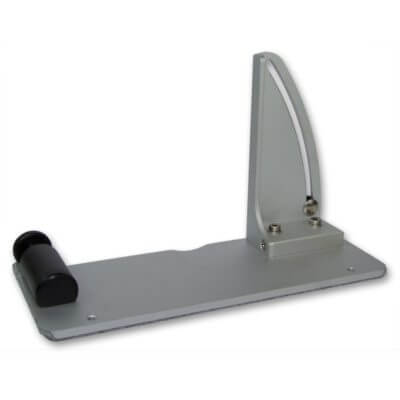

- Easy to mount aluminum guide slide with adjustable cutting depth setting
- Felt coating for polished surfaces and Velcro plastic pad for rough surfaces

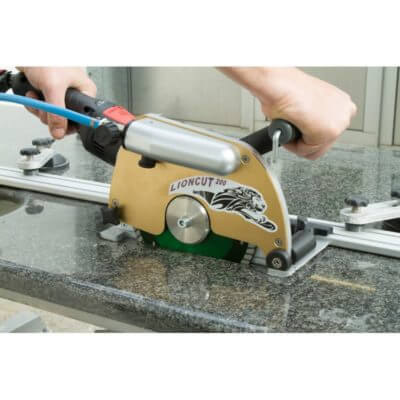

- An additional connecting adapter screwed to the guide slide makes it possible to work with a rail
- Rails in various lengths and fastening options for smooth and rough surfaces are available

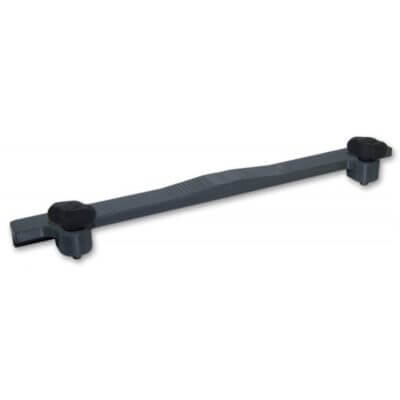

Connecting adaptor – Item no.: 003.036.314
Guide and connecting adaptor between machine and rail
Basic rail set for smooth surfaces – Item no.: 036.120
Rail 100 cm, 2 lever suction cups Ø 90 mm
Basic rail set for rough surfaces – Item no.: 036.126
Rail 100 cm, vacuum unit, 2 vacuum suction cups Ø 90 mm mm with a tube for connection to a suction unit (Venturi system)
Rail, short 100 cm – Item no.: 036.121
Rail, medium 150 cm – Item no.: 036.122
Rail, long 200 cm – Item no.: 036.123
Connecting piece – Item no.: 060.036.124
for joining rails
Suction holder D= 90 mm, 1 piece – Item no.: 036.125
Rubber suction holder for smooth surfaces D= 90 mm with a connecting plate and a fastener to the aluminum rail (as a supplement for additional rails)
Vacuum-Suction Holder D= 90 mm, 1 piece – Item no.: 036.127
Vacuum-suction cup for rough surfaces D= 90 mm with connecting plate, tube, and fastener to the aluminum rail (as a supplement for additional rails)
Additional information
Voltage | |
---|---|
Rotational speed | |
Depth of cut max. | |
Weight |
