ALUMINUM GUIDE RAILS

ALUMINUM GUIDE RAILS:

The LIONCUT and TURBOCUT series cutters can be connected to the rail via an adapter for safe and precise guidance. To achieve the right cutting length, rails can be joined together by means of connecting pieces. Fastening to the surface can be done with clamps on slabs, with rubber suction holders on smooth surfaces, and with vacuum holders on rougher surfaces.

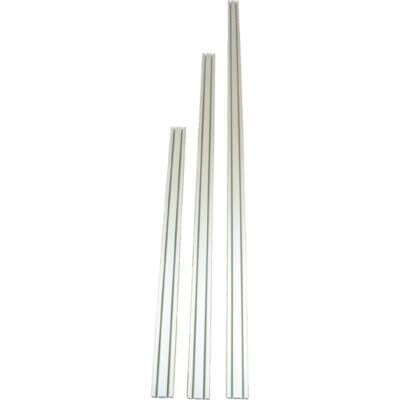

• The aluminum guide rails are available in 100cm, 150cm, and 200cm lengths (other lengths on request)
• A rubber coating underneath makes aligning easier and prevents scratching
• Two 1m long basic sets with fastening options for smooth and rough surfaces are available

Guide rails
Description	Type	Item no.
Rail, short 100cm	with rubber coating underneath	036.121
Rail, medium 150cm	with rubber coating underneath	036.122
Rail, long 200cm	with rubber coating underneath	036.123

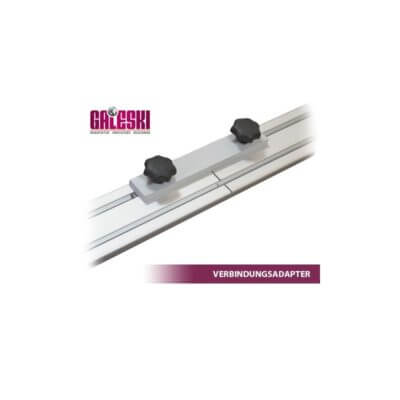

Connecting piece	for joining rails	060.036.124

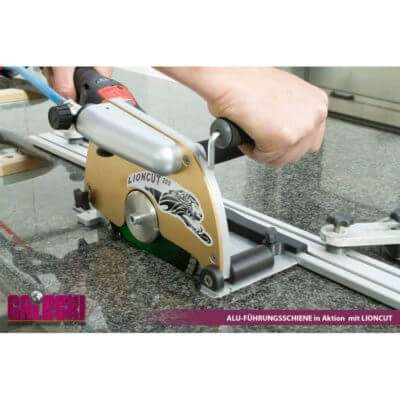

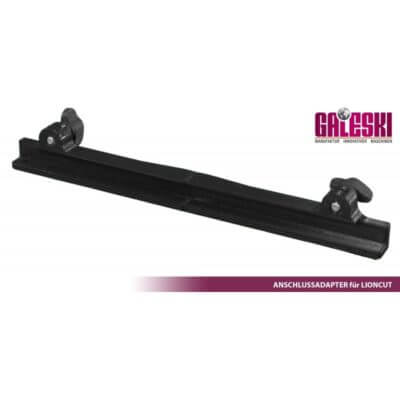

Connecting adaptor for LIONCUT	Guide and connecting adaptor between machine and rail	003.036.314

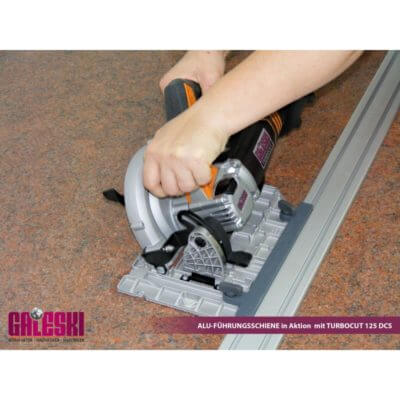

Connecting adaptor for TURBOCUT 125	Guide and connecting adaptor between machine and rail	036.132

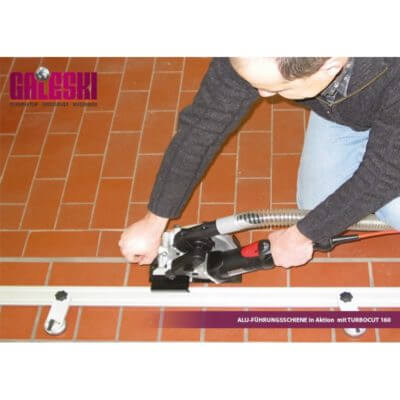

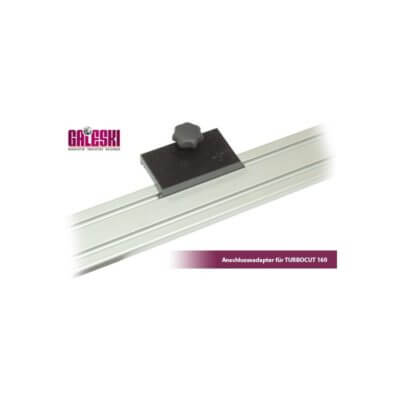

Connecting adaptor for TURBOCUT 160	Guide and connecting adaptor between machine and rail	036.128
Basic rail set for smooth surfaces	Rail 100cm, 2 lever suction cups Ø 90mm	060.120
Suction cups Ø 90 mm, individual	Complete with fastening to rail as a supplement to extension rails	036.125

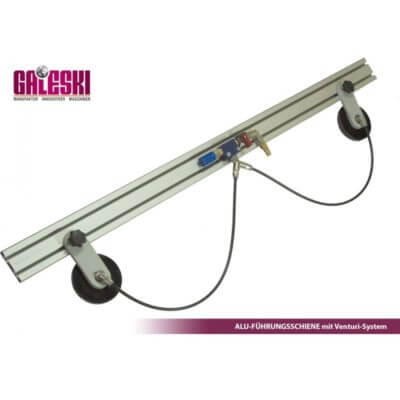

Basic rail set for rough surfaces	Rail 100cm, Vacuum unit, 2 vacuum suction cups Ø 90mm with a hose for connection to a suction unit (Venturi system)	036.126
Vacuum suction holder Ø 90mm, 1-piece	Complete with a fastener to the rail. As a supplement for extension rails	036.127
Drilling aid	Drilling aid with quick connector.Drill Ø 10mm & 20mm. Suitable for dry use.	022.078
